Position feedback modules

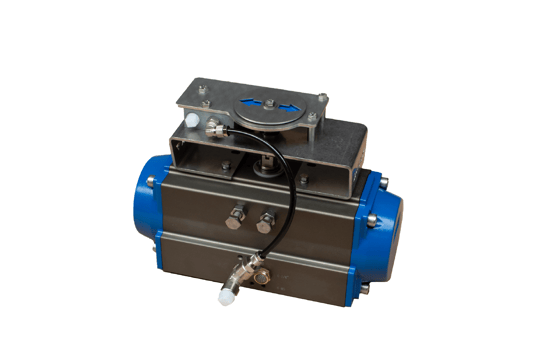

DA-D-A2 Pneumatic feedback module,

The DA-D-A2 module replaces the well known P2 system and provides positive open and close valve position feedback over 1 single pneumatic line and gives the operator the possiblity to operate the valve manually by means of an emergency compressor.







Installation and operation manual DA-D-A2

Download
IOM DA-D-A2 pneumatic feedback module.pd
Adobe Acrobat Document 1.5 MB

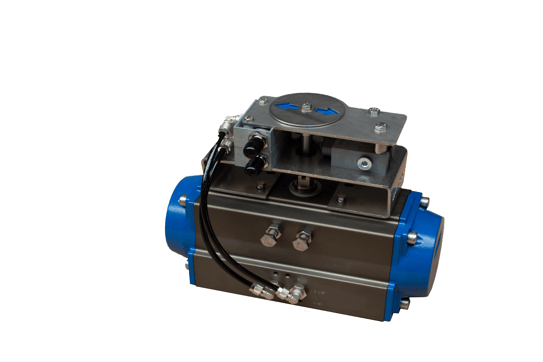

DA-D-D2 Pneumatic feedback module,

The DA-D-D2 module replaces the well known P10 system and provides positive independent open and close valve position feedback regardless off the pneumatic supply and gives the operator the possiblity to operate the valve manually by means of an emergency compressor.



The module is equipped with an auxiliary supply port to provide the possibility to feed pneumatic supply to the neighbouring actuator.

Installation and operation manual DA-D-D2

Download
IOM DA-D-D2 pneumatic feedback module.pd
Adobe Acrobat Document 1.7 MB

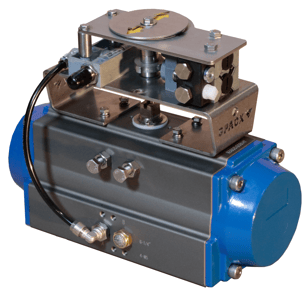

SR-D-A2 Pneumatic feedback module,

The SR-D-A2 module replaces the well known P1 system and provides positive open and close valve position feedback over 1 single pneumatic line and gives the operator the possiblity to operate the valve manually by means of an emergency compressor.







Download
IOM SR-D-A2 pneumatic feedback module.pd
Adobe Acrobat Document 1.6 MB





SR-D-D2 Pneumatic feedback module,

The SR-D-D2 module  provides positive independent open and close valve position feedback regardless off the pneumatic supply and gives the operator the possiblity to operate the valve manually by means of an emergency compressor.







Installation and operation manual SR-D-D2

Download
IOM SR-D-D2 pneumatic feedback module.pd
Adobe Acrobat Document 1.5 MB





SR-D-A1 Pneumatic feedback module,

The SR-D-A1 module replaces the well known P7 system and provides positive open and close valve position feedback over 1 single pneumatic line.







Installation and operation manual SR-D-A1

Download
IOM SR-D-A1 pneumatic feedback module.pd
Adobe Acrobat Document 1.4 MB
